When looking at an electrical panel, you may notice breakers that occupy one position and others that occupy two adjacent positions. These are commonly referred to as single-pole and double-pole circuit breakers.
But what is the actual difference between them?
The key difference is the number of poles each breaker is designed to control and the types of electrical circuits they are commonly used for.
A single-pole breaker typically controls one energized conductor and is commonly used for standard branch circuits. A double-pole, or 2-pole, breaker controls two energized conductors simultaneously and is commonly used for higher-voltage circuits and larger electrical equipment.
Choosing between them isn't simply a matter of choosing the breaker that "looks right." The correct breaker depends on the electrical system, equipment requirements, panel compatibility, voltage, current rating, and other specifications.
This guide explains the difference between single-pole vs double-pole circuit breakers and what buyers should know before selecting a replacement.
Safety note: Electrical panels contain potentially lethal voltages. Breaker installation, replacement, and electrical testing should be performed by a qualified electrician or electrical professional.
What Is a Single-Pole Circuit Breaker?
A single-pole circuit breaker is designed to control and protect one energized circuit conductor.
Single-pole breakers are commonly found in residential and light-commercial electrical panels.
Typical ratings include:
- 15A
- 20A
- 30A
- 40A
- 50A
The exact ratings available depend on the manufacturer and breaker series.
Common Applications
Single-pole breakers are often used for:
- Lighting circuits
- Standard receptacles
- Small appliances
- Electronics
- Bedroom circuits
- Office circuits
- Other branch circuits
In a typical North American residential system, many single-pole branch circuits operate at approximately 120V to neutral.
What Is a Double-Pole Circuit Breaker?
A double-pole circuit breaker, also called a 2-pole breaker, is designed to control two circuit conductors simultaneously.
It typically occupies two adjacent positions in a compatible electrical panel.
A 2-pole breaker is commonly used for circuits requiring two energized conductors, including many 208V and 240V applications.
Common applications can include:
- Electric water heaters
- Electric dryers
- Electric ranges
- Air-conditioning equipment
- Heat pumps
- Large equipment
- Certain commercial circuits
The actual application depends on the electrical system and breaker specifications.

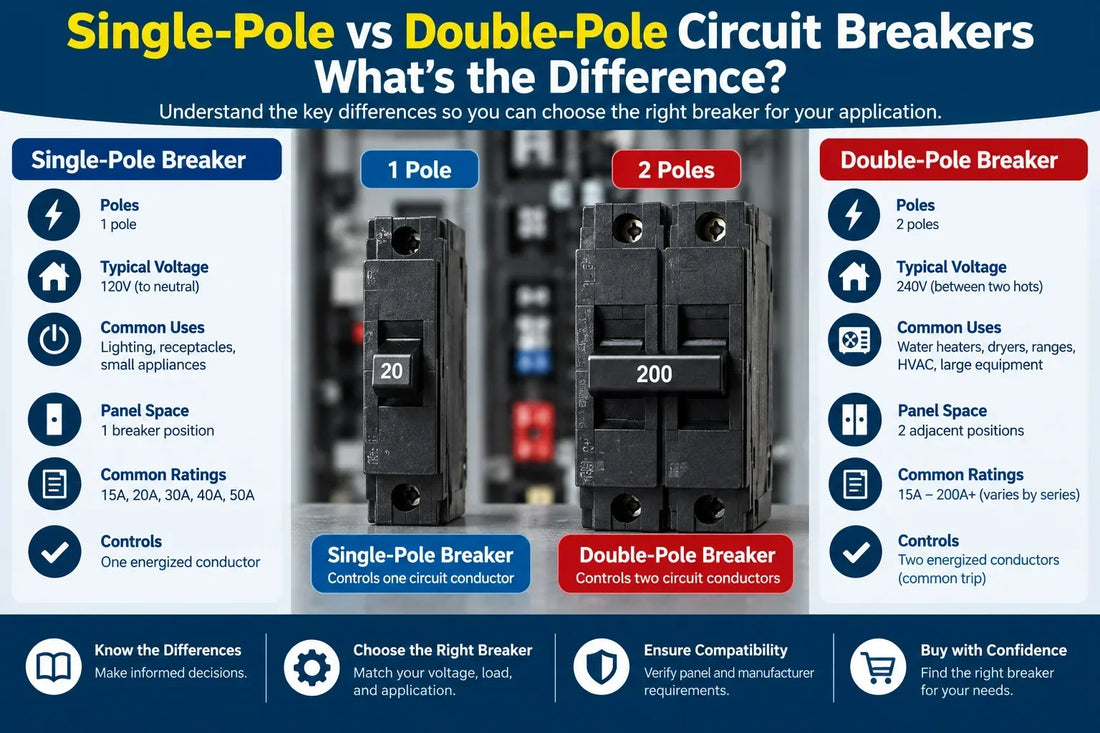

Single-Pole vs Double-Pole Breaker: Quick Comparison
| Feature | Single-Pole Breaker | Double-Pole Breaker |
|---|---|---|
| Poles | 1 | 2 |
| Typical panel space | 1 position | 2 positions |
| Common residential voltage | 120V | 240V |
| Conductors controlled | 1 energized conductor | 2 energized conductors |
| Common applications | Lights, outlets, small loads | HVAC, water heaters, large appliances |
| Handles | Usually one | Usually mechanically connected |
| Common branch-circuit use | Very common | Used for higher-voltage loads |
| Typical current range | Often lower | Available in many ratings |
These are general characteristics. Always verify the specifications of the specific breaker and electrical system.
What Does "Pole" Mean on a Circuit Breaker?
The term pole refers to the number of circuit conductors or switching paths that the breaker is designed to control.
Single-Pole
One pole controls one energized conductor.
Double-Pole
Two poles operate together to control two energized conductors.
Three-Pole
Three poles operate together and are commonly used in three-phase systems.
The number of poles should not be confused with the breaker's amperage rating.
For example:
- 20A 1-pole
- 20A 2-pole
- 100A 2-pole
- 200A 2-pole
- 200A 3-pole
All of these are possible configurations, depending on the breaker family.
How Does a Single-Pole Breaker Work?
A single-pole breaker protects a single circuit conductor.
Under normal operating conditions, current flows through the protected circuit.
If the circuit experiences an overcurrent condition, the breaker's trip mechanism operates according to its design and interrupts the circuit.
Single-pole breakers are commonly used for smaller branch circuits because many standard household loads require only one energized conductor plus the appropriate return and grounding conductors.
How Does a Double-Pole Breaker Work?
A double-pole breaker contains two poles designed to operate together.
When the breaker is switched ON, both poles are connected.
When it is switched OFF or trips under an appropriate fault condition, both poles are disconnected together.
This arrangement is important for circuits that use two energized conductors.
For example, many 240V appliances use two hot conductors. A suitable 2-pole breaker allows both conductors to be controlled and protected by the same breaker assembly.
Single-Pole vs Double-Pole Voltage
Voltage is one of the biggest practical differences buyers notice.
Single-Pole Breakers
In a typical North American residential system, a single-pole breaker commonly supplies approximately:
120V
between the energized conductor and neutral.
Double-Pole Breakers
A double-pole breaker can commonly be used for approximately:
240V
between two hot conductors in a typical split-phase system.
Some commercial systems use approximately 208V between phases.
Important
A breaker does not create voltage by itself.
The voltage comes from the electrical distribution system. The breaker must simply be appropriately rated for the system in which it is installed.
What Are Single-Pole Breakers Used For?
Single-pole breakers are commonly used for everyday electrical circuits.
Lighting
Many lighting circuits use single-pole breakers.
Receptacles
Standard outlets are commonly supplied by single-pole branch circuits.
Small Appliances
Equipment with relatively modest electrical requirements may use a single-pole circuit.
Office Equipment
Computers, monitors, printers, and similar equipment are often supplied through standard branch circuits.
The exact circuit design depends on local electrical requirements and the equipment.
What Are Double-Pole Breakers Used For?
Double-pole breakers are commonly used for equipment requiring two energized conductors.
Examples include:
Electric Water Heaters
Many electric water heaters use 240V circuits.
Electric Dryers
Residential electric dryers commonly use 240V circuits.
Electric Ranges
Electric cooking equipment often requires a higher-voltage circuit.
HVAC Equipment
Air conditioners and heat pumps may use 2-pole breakers.
Large Equipment
Certain commercial and industrial equipment requires two-pole protection.
Always follow the equipment manufacturer's electrical requirements.
Why Does a Double-Pole Breaker Take Up Two Spaces?
A conventional double-pole breaker typically connects to two adjacent bus positions in a compatible panel.
This allows the breaker to connect to two different energized conductors or phases.
The physical size also provides the mechanical arrangement necessary for the two poles to operate together.
However, panel and breaker designs vary.
Do not assume that any breaker occupying two spaces is compatible with any panel.
Single-Pole vs Double-Pole: Which Is More Powerful?
Neither is simply "more powerful."
They are designed for different electrical applications.
A double-pole breaker can be used for higher-voltage circuits, but that doesn't mean every 2-pole breaker has a higher current rating than every single-pole breaker.
For example:
- 50A single-pole breaker
- 20A double-pole breaker
could both exist.
The correct breaker depends on the electrical system and load—not simply the number of poles.
Can a Single-Pole Breaker Replace a Double-Pole Breaker?
No, not automatically.
If a circuit requires a 2-pole breaker, replacing it with a single-pole breaker changes the circuit configuration.
A single-pole breaker does not provide the same two-pole switching arrangement.
For equipment requiring two-pole protection, use the appropriate 2-pole breaker specified for the application.
Can Two Single-Pole Breakers Replace One Double-Pole Breaker?
This is another common question.
Two independent single-pole breakers are not necessarily equivalent to a properly designed 2-pole breaker.
A 2-pole breaker is designed so its poles operate together.
Depending on the electrical system and applicable requirements, a common-trip arrangement may be required.
If the original circuit uses a 2-pole breaker, the appropriate replacement should be selected rather than assuming that two separate breakers are an equivalent substitute.
Single-Pole vs Double-Pole Amperage
The number of poles does not determine the amperage.
You can find different current ratings for both configurations.
Single-Pole Examples
- 15A
- 20A
- 30A
- 40A
- 50A
Double-Pole Examples
- 15A
- 20A
- 30A
- 40A
- 50A
- 60A
- 100A
- 200A
The actual available ratings depend on the breaker manufacturer and series.
What Is the Difference Between a 2-Pole and Double-Pole Breaker?
In most electrical product discussions, 2-pole breaker and double-pole breaker refer to the same basic configuration.
You may see a product described as:
- 2-pole circuit breaker
- Double-pole circuit breaker
- 2P breaker
- DP breaker
The exact terminology varies by manufacturer and product documentation.
For product searches, using both terms can help you find relevant results.
Single-Pole vs Double-Pole Panel Space
One simple way to distinguish them is by the amount of panel space they typically occupy.
Single-Pole
Usually occupies:
1 breaker position
Double-Pole
Usually occupies:
2 adjacent breaker positions
However, panel designs vary, and some breakers have special configurations.
Never determine compatibility solely from the amount of space a breaker occupies.
How to Choose the Correct Breaker
If you're replacing an existing breaker, don't start by asking:
"Do I need a single-pole or double-pole breaker?"
Start by identifying the existing electrical equipment.
Check:
1. Manufacturer
Find the brand of the breaker and panel.
2. Model Number
Record the complete model or catalog number.
3. Amp Rating
Check the current rating.
4. Voltage
Check the voltage rating.
5. Pole Configuration
Determine whether the breaker is 1-pole, 2-pole, or another configuration.
6. Interrupting Rating
Check the kA or kAIC rating.
7. Breaker Series
Identify the specific product family.
8. Panel Compatibility
Confirm that the replacement is approved for the intended panel.
Example: Choosing a 200 Amp 2-Pole Breaker
Suppose you're looking for a:
200 amp 2-pole circuit breaker
You should not purchase the first product that appears in search results.
Instead, verify:
- Manufacturer
- 200A rating
- 2-pole configuration
- Voltage
- Interrupting rating
- Breaker series
- Mounting configuration
- Panel compatibility
If you're sourcing a commercial replacement such as a GE TQD22200, the complete model and product specifications should be checked before ordering.
Internal Link Opportunity
Link 2-pole circuit breaker to your detailed 2-pole guide.
Link GE TQD22200 directly to your relevant product page.
What About 3-Pole Circuit Breakers?
A 3-pole breaker is different from both single-pole and double-pole breakers.
Three-pole breakers are commonly used in three-phase electrical systems.
They control three energized conductors simultaneously.
Typical Applications
- Commercial machinery
- Industrial motors
- HVAC systems
- Manufacturing equipment
- Three-phase distribution systems
If an existing circuit uses a 3-pole breaker, don't replace it with a 2-pole breaker simply because both have the same amperage rating.
Common Mistakes When Choosing Between Single-Pole and Double-Pole Breakers
Mistake 1: Choosing Based Only on Amperage
A 20A breaker is not identified completely by "20A."
You also need the pole configuration and other specifications.
Mistake 2: Choosing Based on Physical Appearance
Two breakers can look similar but belong to different product families.
Mistake 3: Assuming Double-Pole Means Double the Amperage
A 2-pole breaker does not mean the breaker has twice the amp rating.
A 200A 2-pole breaker is still rated at 200 amps, not 400 amps.
Mistake 4: Ignoring Voltage
The breaker must be rated appropriately for the electrical system.
Mistake 5: Ignoring Panel Compatibility
A breaker must be compatible with the panel and equipment for which it is intended.
Mistake 6: Replacing a Breaker Without Investigating Trips
If a breaker keeps tripping, don't automatically replace it.
The cause could be:
- Overload
- Short circuit
- Faulty equipment
- Wiring issue
- Breaker failure
The underlying problem should be professionally investigated.
Frequently Asked Questions
What is the difference between a single-pole and double-pole breaker?
A single-pole breaker controls one energized conductor, while a double-pole breaker controls two conductors simultaneously. Single-pole breakers are commonly used for standard branch circuits, while 2-pole breakers are often used for higher-voltage equipment.
Is a double-pole breaker 240V?
A double-pole breaker is commonly used for 240V circuits in a typical North American split-phase system. However, actual voltage depends on the electrical system and breaker rating.
Is a double-pole breaker twice as powerful?
No. "Double-pole" refers to the number of poles, not twice the current rating.
For example, a 200A 2-pole breaker is a 200 amp breaker, not a 400 amp breaker.
Can I use a double-pole breaker for a 120V circuit?
The correct breaker configuration depends on the circuit design. A 2-pole breaker should only be used where the electrical system and equipment require and permit that configuration.
Can two single-pole breakers replace a double-pole breaker?
Not automatically. A proper 2-pole breaker provides mechanically linked operation, and some circuits require common-trip protection. Use the appropriate breaker for the circuit.
Does a double-pole breaker take two spaces?
A conventional 2-pole breaker typically occupies two adjacent panel positions, but panel designs vary.
Are all double-pole breakers interchangeable?
No. Compatibility depends on the manufacturer, breaker series, panel, voltage, current rating, interrupting rating, mounting configuration, and other specifications.
What is a 2-pole circuit breaker used for?
2-pole breakers are commonly used for larger equipment and circuits requiring two energized conductors, such as many HVAC systems, electric water heaters, dryers, and ranges.
How do I know whether I need a single-pole or double-pole breaker?
Check the existing breaker, electrical panel, and equipment requirements. The manufacturer's specifications and electrical system design should determine the correct configuration.
Single-Pole vs Double-Pole: Quick Buying Checklist
Before ordering a replacement, confirm:
✓ Manufacturer
✓ Complete model/catalog number
✓ Amp rating
✓ Voltage rating
✓ Number of poles
✓ Interrupting rating
✓ Breaker series
✓ Mounting configuration
✓ Panel compatibility
✓ Product condition
If you're replacing an existing breaker, matching the complete specifications is much safer than choosing based on appearance or amperage alone.
Conclusion
Understanding single-pole vs double-pole circuit breakers is important when purchasing electrical equipment or replacing an existing breaker.
A single-pole breaker typically controls one energized conductor and is commonly used for standard branch circuits such as lighting and receptacles.
A double-pole or 2-pole breaker controls two energized conductors simultaneously and is commonly used for higher-voltage circuits and larger equipment.
The most important differences include:
- Number of poles
- Typical voltage
- Panel space
- Circuit configuration
- Common applications
However, the number of poles is only one part of breaker selection.
Before ordering a replacement, always verify the manufacturer, model number, amp rating, voltage, interrupting rating, breaker series, mounting configuration, and panel compatibility.
If you're looking for a commercial 2-pole breaker such as the GE TQD22200, use the exact model number as your starting point and compare the complete specifications before purchasing.
When choosing a replacement breaker, match the electrical system—not just the number printed on the breaker.
