Choosing the correct circuit breaker amperage is one of the most important steps when installing or replacing a circuit breaker.
The amp rating determines the amount of current the breaker is designed to handle for its intended application. Choosing the wrong rating can result in nuisance tripping, inadequate protection, or potentially dangerous conditions.
However, selecting a breaker isn't as simple as choosing the highest amperage available.
A proper selection requires consideration of the:
- Electrical load
- Circuit conductors
- Voltage
- Number of poles
- Panel compatibility
- Breaker type
- Interrupting rating
- Continuous-load requirements
- Manufacturer specifications
In this guide, we'll explain how to choose circuit breaker amperage, what the amp rating means, how load calculations work, and what buyers should check before purchasing a replacement breaker.
Safety note: Electrical panels and circuits can contain hazardous voltages and fault-current levels. Breaker sizing and installation should be performed by a qualified electrician or electrical professional according to applicable electrical requirements.
What Does the Amperage Rating on a Circuit Breaker Mean?
The amperage rating indicates the breaker's rated current for its intended application.
Common breaker ratings include:
- 15 amps
- 20 amps
- 30 amps
- 40 amps
- 50 amps
- 60 amps
- 100 amps
- 125 amps
- 150 amps
- 200 amps
- 400 amps
- 600 amps
For example, a breaker marked 200A is a 200 amp circuit breaker.
However, the 200A marking alone doesn't tell you whether the breaker is appropriate for a particular electrical system.
You must also consider the wiring, panel, voltage, breaker type, and electrical load.
Why Is Choosing the Correct Amperage Important?
A circuit breaker is intended to protect the electrical system from excessive current.
If the breaker rating is not appropriate for the circuit, several problems can occur.
Breaker Too Small
A breaker with an unnecessarily low rating may trip frequently when the circuit operates within its intended design.
Breaker Too Large
Installing a breaker with a higher rating than the circuit and conductors are designed for can prevent the protective device from providing the intended protection.
This is why you should never increase breaker amperage simply to stop a breaker from tripping.
The cause of the tripping should be investigated instead.
How Do You Calculate Circuit Breaker Amperage?
A basic electrical calculation is:
Amps = Watts ÷ Volts
For example, suppose equipment has a load of:
2,400 watts
on a:
120V system
The basic calculation is:
2,400 ÷ 120 = 20 amps
However, this calculation alone does not necessarily determine the final breaker size.
Electrical installations may have additional requirements for:
- Continuous loads
- Motor loads
- Starting current
- Conductor ampacity
- Equipment ratings
- Local electrical codes
A qualified electrician should perform the final sizing calculation.
What Is a Continuous Load?
A continuous load is generally a load expected to operate for a specified extended period under applicable electrical rules.
For certain installations, continuous loads may require additional capacity when sizing the circuit and overcurrent protection.
This means a simple:
Watts ÷ Volts
calculation may not be enough.
For example, a circuit that operates a large electrical load continuously may need to be designed differently from one that operates the same load only intermittently.
Always apply the electrical requirements relevant to the specific installation.
Circuit Breaker Amperage and Wire Size
One of the most important considerations when choosing breaker amperage is the circuit conductor ampacity.
The breaker and conductors must be appropriately matched.
For example, simply replacing a 100 amp breaker with a 200 amp breaker does not make the existing wiring capable of safely carrying 200 amps.
The conductor size and installation conditions must support the intended circuit.
Important Rule
Never select a breaker based only on the equipment's maximum possible load or the desired amount of power.
The entire circuit must be evaluated.
This includes:
- Conductors
- Terminations
- Equipment
- Panel
- Breaker
- Electrical system
Common Circuit Breaker Amperages
Different electrical applications use different breaker ratings.
| Breaker Rating | Common Types of Applications |
|---|---|
| 15A | Lighting and small branch circuits |
| 20A | Receptacles and general-purpose circuits |
| 30A | Certain appliances and equipment |
| 40A | HVAC and larger equipment |
| 50A | Ranges and certain equipment |
| 60A | Larger equipment |
| 100A | Feeders and larger electrical loads |
| 150A | Large feeders/distribution |
| 200A | Main or large distribution applications |
| 400A+ | Commercial and industrial distribution |
These are general examples, not universal rules. The actual breaker size must be determined from the circuit and equipment requirements.

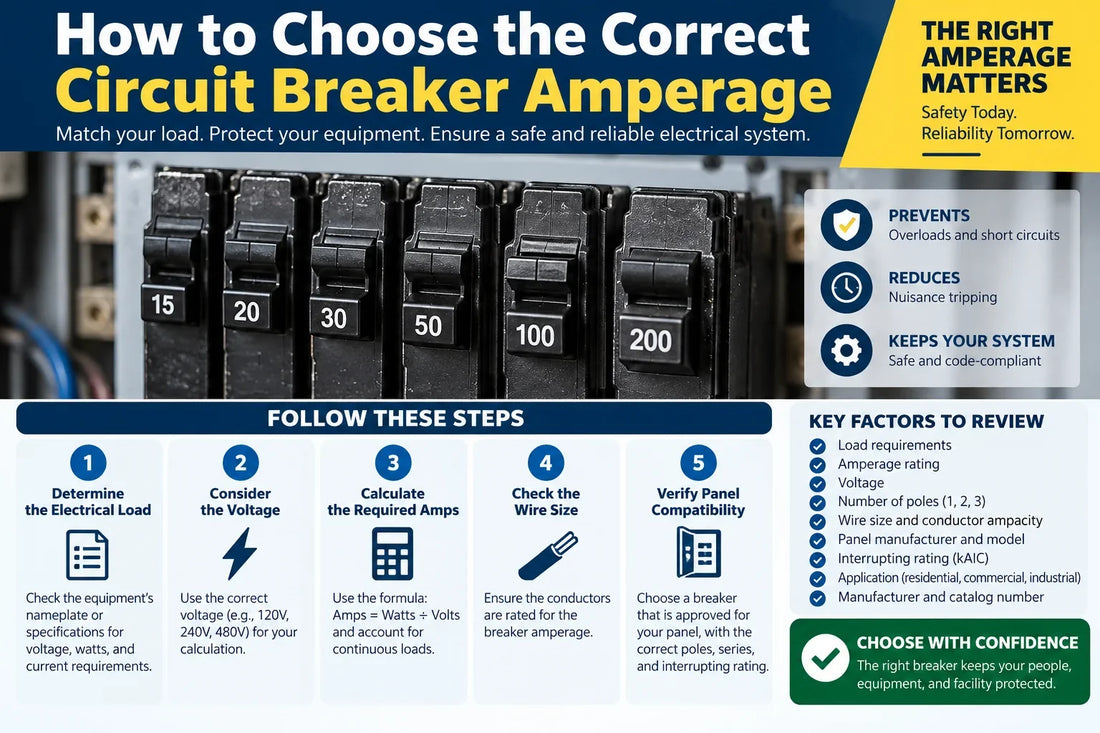

How to Choose the Correct Circuit Breaker Amperage Step by Step
Step 1: Determine the Electrical Load
Start by identifying what the circuit will power.
Examples include:
- Lighting
- Receptacles
- HVAC equipment
- Motors
- Water heaters
- Electric ranges
- Commercial machinery
- Distribution equipment
Find the equipment's electrical specifications from its nameplate or documentation.
Step 2: Determine the System Voltage
The voltage affects the amount of current required for a given power level.
For example:
Amps = Watts ÷ Volts
A 2,400W load requires a different current at 120V compared with 240V.
Therefore, identify whether the system is:
- 120V
- 208V
- 240V
- 480V
- Another applicable voltage
The breaker must also be rated for the electrical system.
Step 3: Determine the Required Pole Configuration
Circuit breaker amperage is only one part of breaker selection.
You also need to determine whether the application requires:
- 1-pole
- 2-pole
- 3-pole
- 4-pole
For example, a 200 amp 2-pole breaker is different from a 200 amp 3-pole breaker.
Remember:
Amp rating tells you the current rating.
Pole count tells you the circuit configuration.
Step 4: Check the Circuit Conductors
The circuit conductors must be suitable for the intended application.
Conductor ampacity depends on factors such as:
- Conductor material
- Conductor size
- Insulation rating
- Ambient temperature
- Number of current-carrying conductors
- Installation method
- Applicable electrical requirements
This is why simply choosing a breaker based on the load calculation can be unsafe.
The complete circuit needs to be evaluated.
Step 5: Check the Electrical Panel
Before ordering a replacement breaker, identify the panel.
Look for:
- Manufacturer
- Panel model
- Voltage
- Approved breaker types
- Panel ratings
- Breaker series
A breaker must be compatible with the electrical panel.
Important:
Physical fit does not automatically mean electrical compatibility.
Step 6: Check the Breaker Type
Circuit breakers are available in different designs.
Depending on the application, you may encounter:
- Standard branch breakers
- Miniature circuit breakers
- Molded case circuit breakers
- Thermal-magnetic breakers
- Electronic-trip breakers
- Plug-on breakers
- Bolt-on breakers
Commercial and industrial systems may require MCCBs or other specialized breaker types.
Step 7: Check the Interrupting Rating
The interrupting rating is another important specification.
You may see ratings such as:
- 10kA
- 14kA
- 22kA
- 25kA
- 35kA
- 65kA
- 100kA
For example:
10kA = 10,000 amps
In a circuit breaker specification, this generally refers to the breaker's rated ability to interrupt fault current under specified conditions.
It does not mean the breaker is designed to carry 10,000 amps continuously.
Step 8: Verify the Manufacturer and Model
If you're replacing an existing breaker, find the:
- Manufacturer
- Model number
- Catalog number
- Series/type
This information can be more useful than the amp rating alone.
For example:
GE TQD22200
is much more specific than:
200 amp breaker
When purchasing a replacement, use the complete model number whenever possible.
Why You Shouldn't Simply Choose a Higher-Amperage Breaker
One of the most common mistakes is replacing a frequently tripping breaker with a larger breaker.
For example:
Existing breaker: 100A
Replacement: 200A
This isn't a valid solution simply because the 200A breaker trips less frequently.
The original breaker may be tripping because of:
- Circuit overload
- Short circuit
- Faulty equipment
- Loose connection
- Wiring problem
- Breaker failure
Increasing the breaker rating without evaluating the circuit can compromise the intended protection.
How Do You Choose a 200 Amp Circuit Breaker?
If your electrical system requires a 200 amp breaker, you still need to identify the complete specifications.
A 200 amp circuit breaker may have different configurations.
Check:
Current Rating
200A
Pole Configuration
For example:
2-pole or 3-pole
Voltage
For example:
240V or another system voltage
Interrupting Rating
For example:
10kAIC or a higher rating
Breaker Series
For example:
TQD
Mounting
For example:
Bolt-on or another compatible configuration
Panel
Confirm the breaker is approved for the intended panel.
Example: Selecting a GE TQD22200
If you are looking for a replacement for a GE TQD22200, don't search only for:
200 amp circuit breaker
Instead, start with the complete model number:
GE TQD22200
Then verify all relevant specifications against your existing equipment.
Depending on the specific application, check:
- TQD series
- Amp rating
- Pole configuration
- Voltage
- Interrupting rating
- Mounting configuration
- Panel compatibility
Internal Link Opportunity
Link GE TQD22200 circuit breaker directly to your TQD22200 product page.
You can also link to your 200A Buying Guide for customers who need additional help selecting a large breaker.
Single-Pole vs. Double-Pole vs. Three-Pole
The breaker amperage does not tell you how many poles you need.
| Configuration | Common Application |
|---|---|
| 1-Pole | Many standard branch circuits |
| 2-Pole | Many higher-voltage circuits |
| 3-Pole | Three-phase systems |
| 4-Pole | Specialized applications |
The appropriate configuration depends on the electrical system.
Does Higher Amperage Mean More Power?
Not by itself.
A higher amperage rating means the breaker is designed for a higher current rating, but the actual power available depends on voltage and system design.
A basic relationship is:
Power = Voltage × Current
For example:
120V × 20A = 2,400 VA
while:
240V × 20A = 4,800 VA
These simplified calculations are useful for understanding the relationship between voltage and current, but they are not substitutes for a complete electrical load calculation.
What Amperage Should a Commercial Circuit Breaker Have?
There is no single amperage that applies to every commercial circuit.
Commercial systems can include breakers rated:
- 20A
- 30A
- 60A
- 100A
- 200A
- 400A
- 600A
- 800A
- 1,000A+
The appropriate rating depends on:
- Connected load
- Conductors
- Equipment
- Distribution system
- Available fault current
- Panel rating
- Protection requirements
This is why commercial breaker selection should be based on the electrical system rather than a generic amperage recommendation.
Common Mistakes When Choosing Circuit Breaker Amperage
Mistake 1: Choosing Based Only on Equipment Wattage
Load calculations must also consider the circuit, conductors, and applicable requirements.
Mistake 2: Installing a Larger Breaker to Stop Tripping
This can compromise circuit protection.
Find the reason for the trip instead.
Mistake 3: Ignoring Wire Size
The breaker and circuit conductors need to be appropriately matched.
Mistake 4: Ignoring Voltage
A correct amperage rating does not make a breaker suitable for every voltage.
Mistake 5: Ignoring Pole Configuration
A 200A 2-pole breaker is not automatically interchangeable with a 200A 3-pole breaker.
Mistake 6: Ignoring Panel Compatibility
The breaker must be approved for the intended electrical panel or equipment.
Mistake 7: Ignoring Interrupting Rating
Commercial and industrial systems may have high available fault current, making interrupting capacity an important specification.
Circuit Breaker Amperage Buying Checklist
Before ordering a breaker, verify the following:
Electrical Requirements
☐ Load requirements
☐ Voltage
☐ Required amperage
☐ Number of poles
☐ Continuous-load requirements
Breaker Specifications
☐ Manufacturer
☐ Model/catalog number
☐ Breaker series
☐ Interrupting rating
☐ Trip type
☐ Mounting configuration
System Compatibility
☐ Panel manufacturer
☐ Panel model
☐ Approved breaker type
☐ Conductor requirements
☐ Equipment requirements
This checklist can help reduce the chance of selecting the wrong replacement.
Frequently Asked Questions
How do I know what amp breaker I need?
The correct breaker amperage depends on the electrical load, conductors, equipment, voltage, and applicable electrical requirements. A qualified electrician should determine the final breaker size for an installation.
Can I use a 200 amp breaker instead of a 100 amp breaker?
Not simply as a replacement. The electrical system, conductors, panel, and equipment must all be designed and rated for the higher capacity.
Does a bigger breaker provide more power?
A higher-rated breaker allows a circuit to be designed for a higher current, but simply installing a larger breaker does not increase the capacity of existing wiring or equipment.
How do I calculate breaker size from watts?
A basic calculation is:
Amps = Watts ÷ Volts
However, additional requirements may apply, including continuous loads, conductor ampacity, motors, equipment ratings, and electrical codes.
What is the difference between breaker amps and kAIC?
The amp rating describes the breaker's current rating for its intended application. kAIC refers to its rated interrupting capacity for fault current under specified conditions.
Is a 20 amp breaker always used with the same wire size?
Not necessarily. Conductor selection depends on the conductor, installation conditions, applicable requirements, and equipment. A qualified professional should verify the complete circuit design.
What happens if a circuit breaker is too large?
If the breaker is oversized relative to the circuit conductors and equipment, it may fail to provide the intended overcurrent protection. Never increase breaker size without verifying the entire circuit.
What happens if a circuit breaker is too small?
An undersized breaker may trip when the circuit operates at loads that are appropriate for the equipment but exceed the breaker's rating.
The correct solution is to properly evaluate the circuit rather than simply choosing a larger breaker.
How do I choose the correct 200 amp breaker?
Start with the existing breaker's complete identification information. Verify the manufacturer, model, series, 200A rating, voltage, pole configuration, interrupting rating, mounting style, and panel compatibility.
Final Thoughts
Learning how to choose circuit breaker amperage is essential when purchasing or replacing electrical protection equipment.
The correct breaker isn't simply the one with the highest amp rating or the one that matches the equipment's maximum wattage.
A proper selection considers the entire electrical system.
Before purchasing, verify:
- Load requirements
- Breaker amperage
- Voltage
- Number of poles
- Conductor ampacity
- Interrupting rating
- Breaker type
- Manufacturer and model
- Panel compatibility
- Mounting configuration
If you're purchasing a commercial breaker such as the GE TQD22200, use the complete model number as your starting point and compare all relevant specifications before ordering.
And if an existing breaker keeps tripping, don't simply replace it with a higher-amperage breaker. The underlying electrical problem should be identified first.
Choose the breaker based on the complete electrical system—not just the number printed on the front.
