Circuit breakers are essential components of electrical systems because they help protect wiring, equipment, and electrical distribution systems from excessive current and short circuits.
However, not all circuit breakers are designed for the same applications.
When researching electrical protection equipment, you may come across terms such as molded case circuit breaker (MCCB) and standard circuit breaker. Although both are designed to interrupt electrical current under fault conditions, they can differ significantly in their construction, current ratings, applications, trip characteristics, and installation requirements.
Understanding these differences can help you choose the right breaker for a residential, commercial, or industrial application.
In this guide, we'll explain what a molded case circuit breaker is, what people generally mean by a standard circuit breaker, and how the two compare.
Safety note: Electrical systems can contain dangerous voltages and fault-current levels. Circuit breaker selection, installation, and testing should be performed by a qualified electrical professional in accordance with applicable requirements and manufacturer instructions.
What Is a Molded Case Circuit Breaker?
A molded case circuit breaker, commonly called an MCCB, is a circuit breaker enclosed in an insulated molded housing.
MCCBs are commonly designed for higher-current and more demanding electrical applications than the small branch-circuit breakers commonly found in residential panels.
Depending on the model, an MCCB may provide:
- Overload protection
- Short-circuit protection
- Adjustable trip settings
- Higher current ratings
- Higher interrupting ratings
- Multiple pole configurations
- Accessories for specialized applications
MCCBs are widely used in commercial and industrial electrical distribution systems.
What Is a Standard Circuit Breaker?
The term "standard circuit breaker" can mean different things depending on the context.
In residential and light-commercial discussions, it often refers to a conventional branch circuit breaker used in a load center or panelboard.
These breakers are commonly used for circuits supplying:
- Lighting
- Receptacles
- Small appliances
- HVAC equipment
- Other branch circuits
They are generally more compact than MCCBs and are available in a wide range of current and voltage ratings.
However, "standard circuit breaker" is not a precise technical product classification. A buyer should always identify the exact breaker type and model when comparing products.

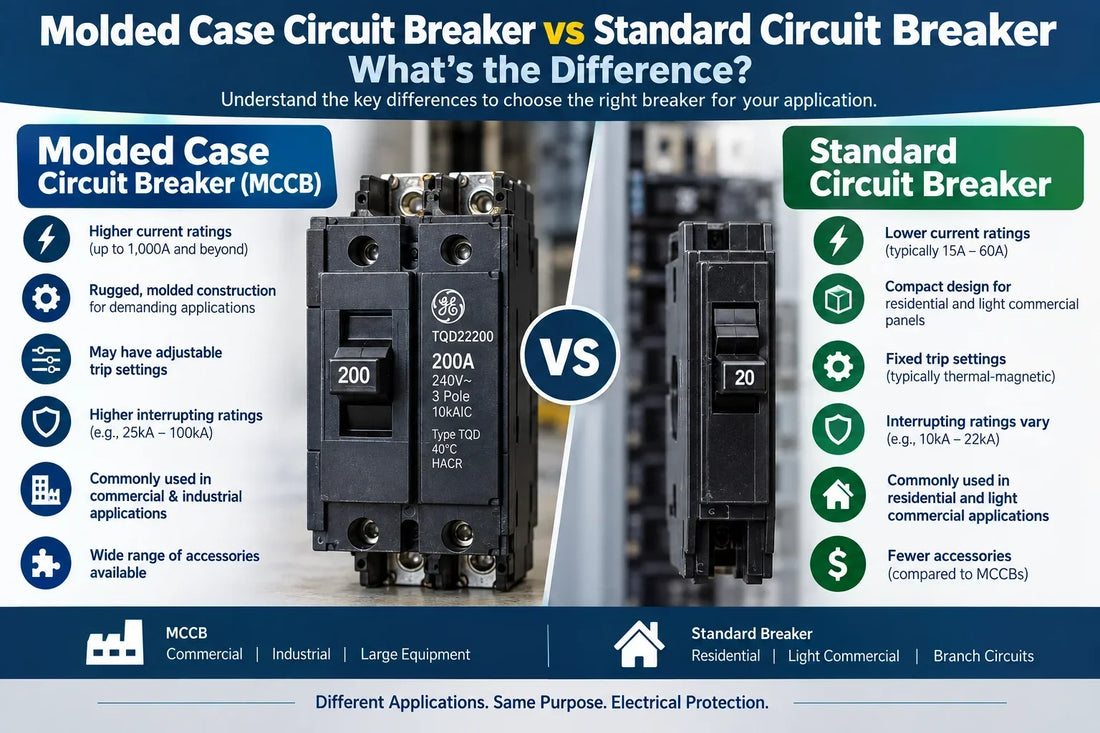

MCCB vs. Standard Circuit Breaker: Quick Comparison
| Feature | Molded Case Circuit Breaker | Standard Branch Circuit Breaker |
|---|---|---|
| Common abbreviation | MCCB | Often simply "breaker" |
| Typical applications | Commercial & industrial | Residential & light commercial |
| Current ratings | Often higher | Generally lower |
| Physical size | Usually larger | Usually more compact |
| Trip settings | May be adjustable | Often fixed |
| Interrupting capacity | Can be very high | Varies by model |
| Protection | Overload & short circuit | Overload & short circuit |
| Accessories | Many options available | More limited depending on model |
| Panel installation | Often panelboard/switchboard equipment | Commonly load centers/panelboards |
| Application flexibility | High | More application-specific |
These are general differences. Individual breaker models can have specifications that fall outside these typical characteristics.
1. Difference in Current Ratings
One of the most noticeable differences is the range of current ratings available.
Standard branch breakers are commonly used for relatively small circuits, such as:
- 15 amps
- 20 amps
- 30 amps
- 40 amps
- 50 amps
- 60 amps
MCCBs are available in much higher ratings, depending on the product family.
They may be used for applications involving:
- 100 amps
- 200 amps
- 400 amps
- 600 amps
- 800 amps
- 1,000 amps
- Higher ratings
The exact available ratings depend on the manufacturer and breaker series.
For example, a commercial breaker such as the GE TQD22200 falls into the type of equipment where buyers need to evaluate more than just the amperage rating.
2. Difference in Physical Construction
MCCBs are generally built with a larger molded insulating housing designed for more demanding applications.
The enclosure provides insulation and helps contain the internal components during operation.
Standard branch breakers are usually much smaller because they are designed to fit compactly into electrical load centers.
The physical construction of an MCCB may include:
- Larger contacts
- More substantial internal components
- Thermal-magnetic or electronic trip mechanisms
- Larger terminals
- Accessory compartments
The construction depends on the specific product.
3. Difference in Trip Mechanisms
Another important difference is the type of trip mechanism available.
Standard Circuit Breakers
Many conventional branch breakers use fixed thermal-magnetic protection.
The breaker responds to:
Overload → Thermal protection
Short circuit → Magnetic protection
The exact trip characteristics depend on the breaker design.
MCCBs
MCCBs can use thermal-magnetic or electronic trip units.
Some electronic-trip MCCBs provide additional adjustment options, allowing qualified professionals to configure protection based on the electrical system.
Depending on the model, settings may include:
- Long-time pickup
- Short-time pickup
- Instantaneous pickup
- Ground-fault protection
Not every MCCB offers all of these functions, so product specifications must be checked carefully.
4. Difference in Interrupting Rating
The interrupting rating indicates the amount of fault current a breaker is designed to safely interrupt under specified conditions.
This is especially important in commercial and industrial electrical systems.
Standard breakers may have ratings such as:
- 10kA
- 14kA
- 22kA
MCCBs can be available with substantially higher interrupting ratings depending on the model.
Examples may include:
- 25kA
- 35kA
- 50kA
- 65kA
- 100kA
A higher interrupting rating is not automatically "better." The appropriate rating must be suitable for the available fault current and other system requirements.
5. Difference in Applications
Where Are Standard Circuit Breakers Used?
Conventional branch breakers are commonly used in:
- Homes
- Apartments
- Small offices
- Retail spaces
- Light commercial buildings
Typical loads include:
- Lights
- Outlets
- Small appliances
- Air-conditioning circuits
- Kitchen equipment
Where Are MCCBs Used?
MCCBs are commonly found in:
- Commercial buildings
- Industrial facilities
- Manufacturing plants
- Data centers
- Large HVAC systems
- Distribution panels
- Motor control systems
- Large equipment
They are particularly useful where higher current ratings or more sophisticated protection options are required.
6. Difference in Adjustability
Many standard branch circuit breakers have fixed trip characteristics.
This makes them relatively straightforward for typical branch-circuit applications.
MCCBs, especially models equipped with adjustable or electronic trip units, can offer more flexibility.
Depending on the product, a qualified professional may be able to adjust certain protection settings to coordinate the breaker with other protective devices.
This is known as selective coordination.
The goal is to help ensure that the protective device closest to a fault operates first, where the system design and applicable requirements call for it.
7. Difference in Size
MCCBs are generally larger than conventional branch circuit breakers.
The larger size allows manufacturers to accommodate:
- Higher current capacity
- Larger conductors
- Larger contacts
- Higher interrupting ratings
- Advanced trip mechanisms
- Accessories
However, size varies considerably between breaker families.
Never select a breaker based solely on physical dimensions.
8. Difference in Installation
Standard branch breakers are commonly designed to install directly into compatible load centers or panelboards.
MCCBs can be installed in:
- Panelboards
- Switchboards
- Distribution equipment
- Motor control equipment
- Industrial electrical systems
Mounting configurations can include different forms of:
- Plug-on connections
- Bolt-on connections
- Fixed mounting
- Draw-out configurations
The correct mounting method depends on the equipment and manufacturer.
Can an MCCB Replace a Standard Circuit Breaker?
Not automatically.
An MCCB may have a higher current rating or more advanced features, but that does not mean it can simply replace a conventional breaker.
Before considering a replacement, verify:
- Panel compatibility
- Current rating
- Voltage rating
- Pole configuration
- Interrupting rating
- Mounting method
- Terminal requirements
- Protection characteristics
- Manufacturer approval
The breaker and electrical equipment must be designed to work together.
Can a Standard Breaker Replace an MCCB?
Generally, you should not assume that it can.
If an electrical system was designed around an MCCB, replacing it with a smaller conventional breaker could result in:
- Insufficient current capacity
- Inadequate interrupting rating
- Incorrect protection
- Installation incompatibility
- Improper coordination
The replacement should meet the original equipment and system requirements.
What Is an MCCB Used for in Commercial Buildings?
Commercial electrical systems often have larger electrical loads than residential systems.
An MCCB may be used to protect:
Main Distribution Equipment
MCCBs can protect electrical feeders and distribution circuits.
HVAC Systems
Large heating and cooling systems may require high-current circuit protection.
Motors
Industrial and commercial motors can require specialized protection and coordination.
Manufacturing Equipment
Production machinery may have substantial current requirements.
Large Electrical Panels
MCCBs can be used as feeder or main protective devices in larger electrical distribution systems.
What Is the Difference Between MCCB and MCB?
This is another common question.
MCB stands for Miniature Circuit Breaker.
MCCB stands for Molded Case Circuit Breaker.
| Feature | MCB | MCCB |
|---|---|---|
| Full Name | Miniature Circuit Breaker | Molded Case Circuit Breaker |
| Typical Application | Residential/light commercial | Commercial/industrial |
| Current Range | Generally lower | Generally higher |
| Size | Compact | Larger |
| Trip Adjustment | Usually limited | May be adjustable |
| Interrupting Rating | Varies | Often higher |
| Accessories | Limited | More extensive |
MCBs and MCCBs are both circuit breakers, but they serve different ranges of applications.
Why Are MCCBs Important for Industrial Applications?
Industrial facilities can have large electrical loads and high available fault currents.
They may also require greater control over protection and coordination.
MCCBs can provide features that are valuable in these environments, including:
- Higher current ratings
- Higher interrupting capacities
- Adjustable protection
- Multiple accessories
- Auxiliary contacts
- Shunt trips
- Undervoltage releases
- Alarm contacts
The availability of these features depends on the specific MCCB model.
What Should You Check When Buying an MCCB?
If you're purchasing a molded case circuit breaker, don't select a product based only on the current rating.
Check the complete specifications.
1. Ampere Rating
Determine the required continuous current rating.
Examples include:
- 100A
- 150A
- 200A
- 400A
- 600A
2. Voltage Rating
Check the system voltage and verify that the breaker is rated accordingly.
3. Number of Poles
Common configurations include:
- 2-pole
- 3-pole
- 4-pole
The correct configuration depends on the electrical system.
4. Interrupting Rating
Verify the required interrupting capacity based on the electrical system's available fault current.
5. Trip Unit
Determine whether the application requires:
- Thermal-magnetic protection
- Electronic trip protection
- Adjustable settings
- Ground-fault protection
6. Panel Compatibility
Confirm that the breaker is compatible with the panelboard, switchboard, or other equipment.
7. Mounting Configuration
Check whether the equipment requires:
- Plug-on
- Bolt-on
- Fixed
- Draw-out
or another configuration.
Example: GE TQD22200
If you're researching the GE TQD22200, it is important to evaluate the complete product specifications instead of simply searching for a "200 amp MCCB."
Before purchasing, verify:
- Exact catalog number
- TQD series
- Current rating
- Voltage rating
- Pole configuration
- Interrupting rating
- Mounting requirements
- Panel compatibility
This is particularly important when purchasing replacement commercial electrical equipment.
Internal Link Opportunity
Link the phrase GE TQD22200 circuit breaker directly to your TQD22200 product page.
You can also link circuit breaker buying guide to your broader buying guide to help customers understand breaker specifications before purchasing.
How to Decide Between an MCCB and Standard Circuit Breaker
The right choice depends on the application.
Choose a Standard Branch Breaker When:
- The circuit is relatively small.
- The panel is designed for conventional branch breakers.
- Fixed trip characteristics are appropriate.
- The application does not require MCCB features.
Consider an MCCB When:
- The circuit has a higher current requirement.
- The electrical system has higher available fault current.
- Adjustable protection is required.
- The installation is commercial or industrial.
- Advanced accessories are required.
- The electrical distribution equipment is designed for MCCBs.
The final selection should always be based on the electrical system design and the manufacturer's specifications.
Common Mistakes When Choosing an MCCB
Mistake 1: Choosing Only by Amp Rating
A 200A breaker isn't automatically interchangeable with every other 200A breaker.
Mistake 2: Ignoring the Interrupting Rating
The breaker must have an appropriate interrupting rating for the available fault current.
Mistake 3: Assuming Physical Fit Means Compatibility
A breaker can physically fit while still being unsuitable for the panel.
Mistake 4: Ignoring Voltage
Always verify the system voltage and breaker voltage rating.
Mistake 5: Selecting the Wrong Trip Unit
An application requiring adjustable protection may need an MCCB with an appropriate trip unit rather than a basic fixed-trip breaker.
Frequently Asked Questions
What is a molded case circuit breaker?
A molded case circuit breaker, or MCCB, is a circuit breaker enclosed in an insulated molded housing and commonly used for higher-current commercial and industrial applications.
What is the main difference between an MCCB and a standard circuit breaker?
MCCBs are generally designed for higher-current applications and can offer higher interrupting ratings, larger physical construction, adjustable trip units, and additional accessories. Standard branch breakers are typically used for smaller circuits.
Is an MCCB better than a standard circuit breaker?
Not necessarily. Each is designed for different applications. The correct breaker depends on the electrical system, load, fault current, panel, and required protection.
Can an MCCB be used in a residential panel?
Some MCCBs may be suitable for certain residential applications, but compatibility and application must be verified. An MCCB should not be installed in a panel unless the equipment is designed and approved for that breaker.
What does MCCB stand for?
MCCB stands for Molded Case Circuit Breaker.
What is the difference between MCB and MCCB?
MCB means Miniature Circuit Breaker, while MCCB means Molded Case Circuit Breaker. MCCBs are generally used for higher-current and more demanding commercial and industrial applications.
Does an MCCB have adjustable settings?
Some MCCBs have adjustable trip settings, particularly models equipped with electronic trip units. Others have fixed settings. Always check the individual product specifications.
What should I check before buying an MCCB?
Check the:
- Current rating
- Voltage rating
- Pole configuration
- Interrupting rating
- Trip unit
- Panel compatibility
- Mounting configuration
- Manufacturer and model number
Conclusion
The difference between a molded case circuit breaker and a standard circuit breaker comes down to application, construction, ratings, protection features, and system requirements.
Standard branch circuit breakers are commonly used for smaller residential and light-commercial circuits, while MCCBs are frequently used for higher-current commercial and industrial electrical distribution.
MCCBs may offer:
- Higher current ratings
- Higher interrupting capacities
- Adjustable protection
- Advanced trip units
- Additional accessories
- Greater application flexibility
However, an MCCB is not automatically a better choice. The correct breaker must match the electrical system and equipment.
When purchasing a replacement, always verify the manufacturer, model, amperage, voltage, poles, interrupting rating, trip unit, mounting configuration, and panel compatibility.
For commercial breakers such as the GE TQD22200, using the complete catalog number and comparing the manufacturer's specifications is the best way to identify the appropriate product.
